8EY33LW
- Rated Output (kWe)
- 3800, 4300, 4600
- Rated Speed 50hz (min -1)
- 750
- Rated Speed 60hz (min -1)
- 720
- No of cylinders
- inline-8
- Bore x Stroke - MM
- 330
- Bore x Stroke - MM
- 440
Rated output
| Engine model | 60 Hz – 720 min-1 | 50 Hz – 750 min-1 |
| kWe | ||
| 8EY33LW | 3800 | |
| 4300 | ||
| 4600 | ||
– The stated generator capacity is subject to change based on the generator’s actual operating efficiency

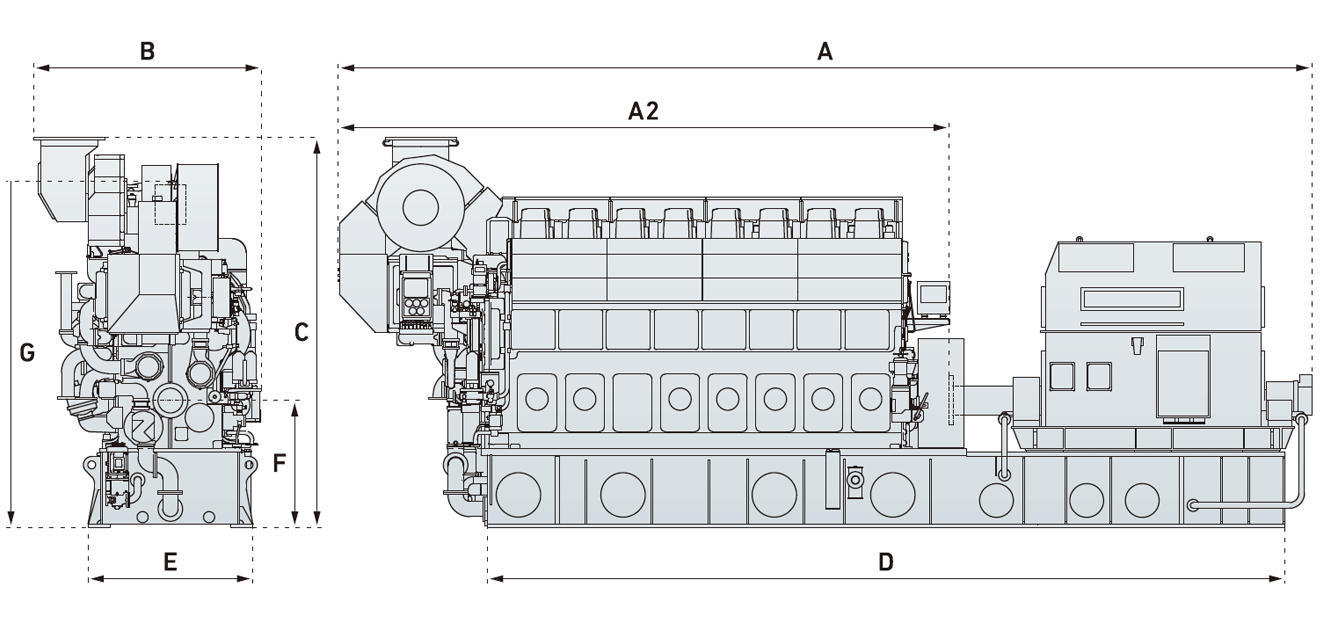

Dimensions & Weights
[mm/kg]
| Engine model | kWe | A | A2 | B | C | D | E | F | G | Dry weight |
| 8EY33LW | 3800~4600 | 10640 | 6655 | 2555 | 4470 | 7950 | 1780 | 1620 | 3992 | 90200 |
– Depending on the specifications or options, your model may differ slightly from the one in the photograph and outline.
G: Minimum height for removing the piston (not including the dimension for the bolt fitting to the piston)
* Specifications and/or images are subject to change without prior notice due to enhancements or other factors.
Rated output
| Engine model | 60 Hz – 720 min-1 | 50 Hz – 750 min-1 |
| kWe | ||
| 6EY33LW | 2550 | |
| 2800 | ||
| 3200 | ||
| 3450 | ||
– The stated generator capacity is subject to change based on the generator’s actual operating efficiency

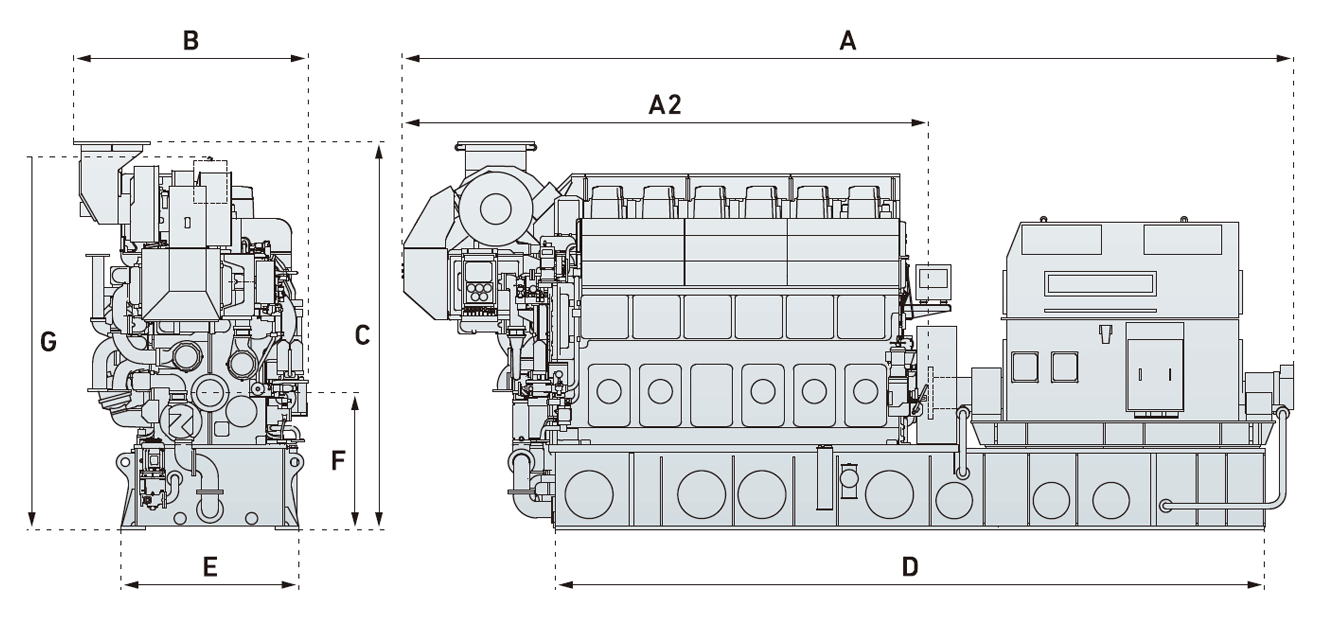

Dimensions & Weights
[mm/kg]
| Engine model | kWe | A | A2 | B | C | D | E | F | G | Dry weight |
| 6EY33LW | 2550~3450 | 8950 | 5280 | 2355 | 3895 | 7130 | 1780 | 1370 | 3742 | 63000 |
– Depending on the specifications or options, your model may differ slightly from the one in the photograph and outline.
G: Minimum height for removing the piston (not including the dimension for the bolt fitting to the piston)
* Specifications and/or images are subject to change without prior notice due to enhancements or other factors.
