Inline-6
6EY26W(S)
- Rated Output (kW)
- 1471, 1620, 1920
- Rated Speed
- 750
- No of cylinders
- inline-6
- Displacement ltr
- 122.6
- Bore x Stroke - MM
- 260
- Bore x Stroke - MM
- 385

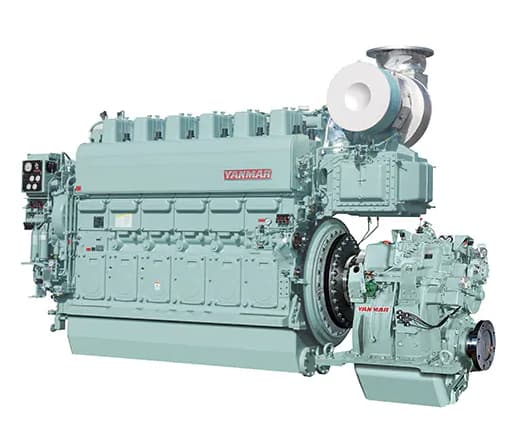

Yanmar 6EY26W • Overview and Specifications
| 6EY26W | |||
| Number of cylinders | 6 | ||
| Cylinder bore (mm) | 260 | ||
| Piston stroke (mm) | 385 | ||
| Continuous rated power kW (PS) | 1471 (2000) | 1620 (2203) | 1920 (2610) |
| Rated engine speed (min-1 ) | 750 | ||
| Engine dry mass (kg) | 18500 | ||
Yanmar 6EY26W • Marine Gear Specifications
| Propeller Type | for C.P.P. | for F.P.P. | for C.P.P. | for F.P.P. | for C.P.P. | for F.P.P. | |
| Marine gear model | Offset | YXH-2000M | YXH-2000 | YXH-2500M | YXH-2500 | YXH-2500M | YXH-2500 |
| Co-axial | YXH-2000MC | YXH-2000C | YXH-2000MC | YXH-2000C | YXH-2500MC | YXH-2500C | |
| Reduction gear ratio (ahead) | Offset | 2.23, 2.58, 2.79, 3.03 | |||||
| Co-axial | 2.23, 2.58, 2.79, 3.03 | ||||||
| Marine gear dry weight (kg) | Offset | 3900 | 4750 | 3950 | 4800 | 3950 | 4800 |
| Co-axial | 4300 | 5050 | 4400 | 5150 | 4400 | 5150 | |

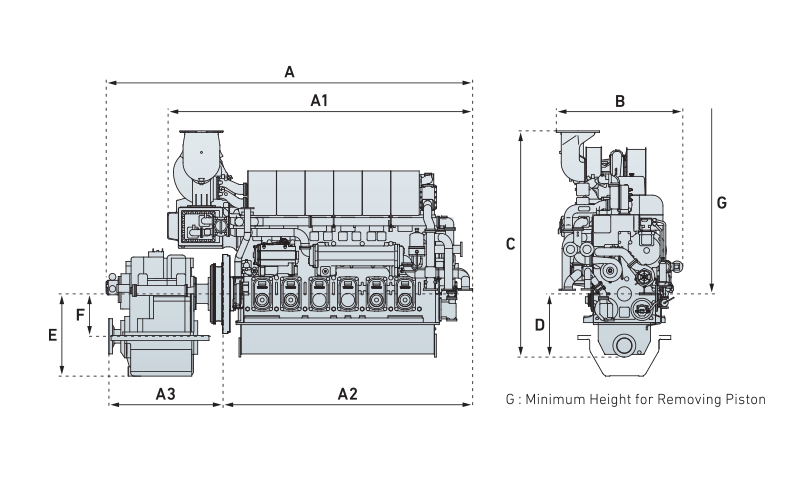

Yanmar 6EY26W • Dimensions & Performance Curves
[mm] / [kg]
| Engine model | Marine gear | A | A1 | A2 | A3 | B | C | D | E | F | G | Total dry weight incl. marine gear |
| 6EY26W (1471kW) | YXH-2000M | 5702 | 4271 | 3563 | 1882 | 1804 | 3112 | 842 | 1145 | 590 | 1900 | 22549 |
| YXH-2000MC | 5880 | 4271 | 3563 | 2322 | 1804 | 3112 | 842 | 555 | – | 1900 | 22949 | |
| YXH-2000 | 5483 | 4271 | 3563 | 1882 | 1804 | 3112 | 842 | 1145 | 590 | 1900 | 23349 | |
| YXH-2000C | 5601 | 4271 | 3563 | 2070 | 1804 | 3112 | 842 | 555 | – | 1900 | 23649 | |
| 6EY26W (1620kW) (1920kW) | YXH-2500M | 5710 | 4271 | 3563 | 1890 | 1804 | 3112 | 842 | 1145 | 590 | 1900 | 22640 |
| YXH-2500MC | 5880 | 4271 | 3563 | 2320 | 1804 | 3112 | 842 | 555 | – | 1900 | 23090 | |
| YXH-2500 | 5491 | 4271 | 3563 | 1890 | 1804 | 3112 | 842 | 1145 | 590 | 1900 | 23490 | |
| YXH-2500C | 5601 | 4271 | 3563 | 2070 | 1804 | 3112 | 842 | 555 | – | 1900 | 23840 |
* Specifications and/or images are subject to change without prior notice due to enhancements or other factors.
