C-rating
H-rating
Inline-6
L-rating
M-rating
S-rating
6GY135W
- Rated Output (kW)
- 372, 447, 522, 559, 599
- Rated Speed
- 1800, 2100
- No of cylinders
- 6 in-line
- Displacement ltr
- 14.600
- Bore x Stroke - MM
- 135
- Bore x Stroke - MM
- 170

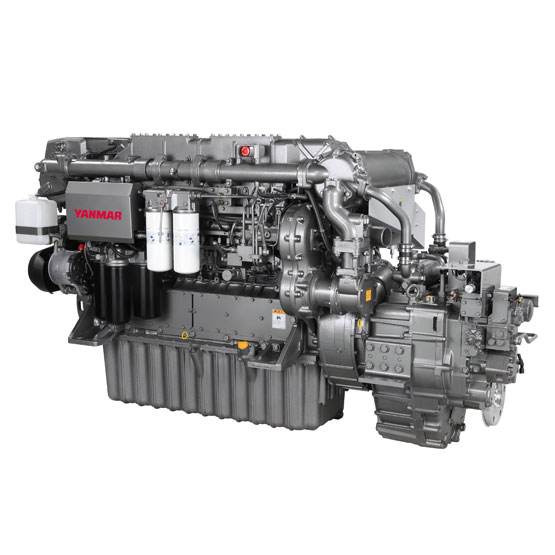

Yanmar 6GY135W-series — Overview and Specifications
| 6GY135W | |||||
| Rating | C | H | M | L | S |
| Number of cylinders | 6 in-line | ||||
| Displacement (L) | 14.600 | ||||
| Cylinder bore (mm) | 135 | ||||
| Piston stroke (mm) | 170 | ||||
| Rated output kW (mhp) /rpm | 372 (499) / 1800 | 447 (559) / 1800 | 522 (700) / 2100 | 559 (750) / 2100 | 599 (803) / 2100 |
| Combustion system | Direct injection | ||||
| Aspiration | Turbocharger + intercooler | ||||
| Cooling system | Heat exchanger | ||||
| Starting system | Electric starting motor (24V 6.0kW) | ||||
| Size of flywheel housing and flywheel | SAE #1 and 14 in. | ||||
| Dry mass (kg) | 1825 (without marine gear) | ||||
| EPA Tier III | • | • | • | • | • |
| IMO Tier II | • | • | • | • | • |
| IMO Tier III | • | • | • | • | • |
Yanmar 6GY135W-series — Marine Gear Specifications
| Engine model | YHX–160-7 | |
| 6GY135W (372 kW) (447 kW) (522 kW) (559 kW) (599 kW) | Type | Hydraulic multi-disc clutch |
| Reduction ratio [Ahead] | 1.97 2.46 3.05 3.24 | |
| Direction of rotation [propeller shaft] | Clockwise or counter-clockwise | |
| Dry weight [kg] | 422 |
Yanmar 6GY135W-series — Dimensions & Performance Curves
Yanmar 6GY135W (372 kW) — Dimensions & Performance Curves

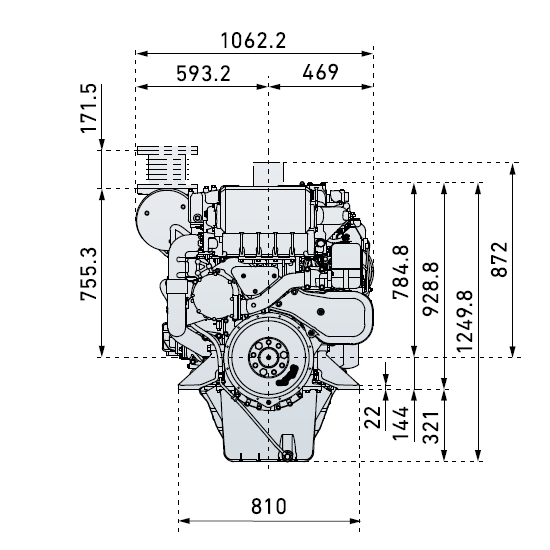

Engine only / front view:

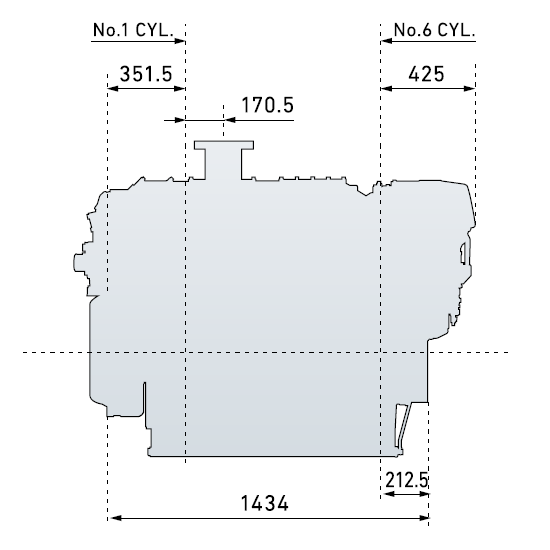

Engine only / right side view:

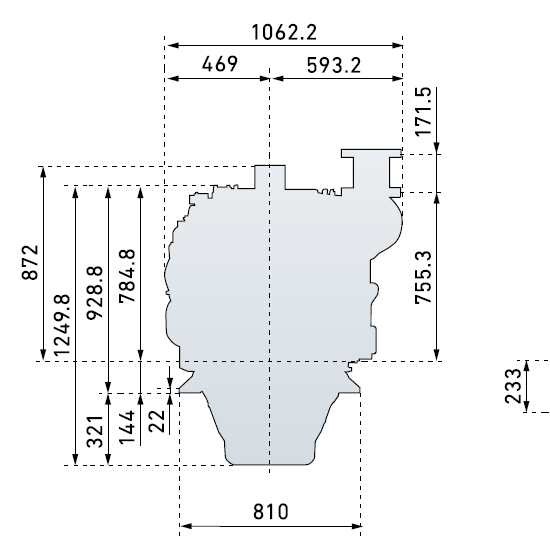

Engine only / rear view:
Engine with YXH160-7 gearbox / right side view:
Fuel consumption and output:

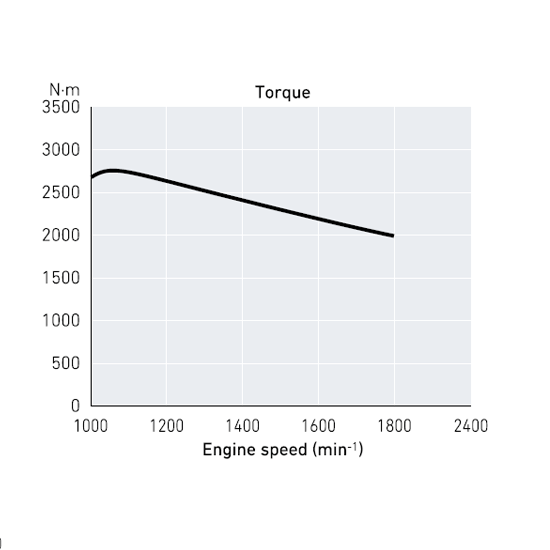

Torque:
Yanmar 6GY135W (447 / 522 kW) — Dimensions & Performance Curves
Engine only / front view:
Engine only / right side view:
Engine only / rear view:
Engine with YXH160-7 gearbox / right side view:

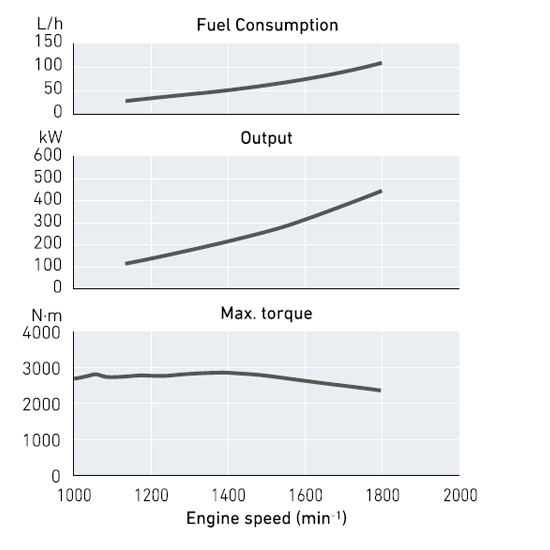

Fuel consumption, output and torque (447 kW):
Fuel consumption, output and torque (522 kW):
Yanmar 6GY135W (559/ 599 kW) — Dimensions & Performance Curves
Engine only / front view:
Engine only / right side view:
Engine only / rear view:
Engine with YXH160-7 gearbox / right side view:
Fuel consumption, output and torque (559 kW):

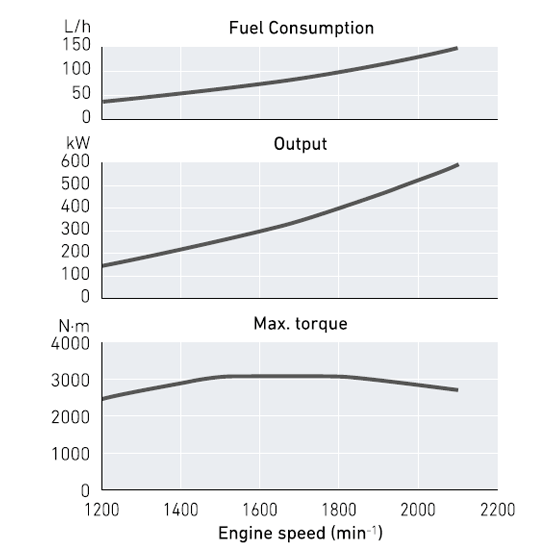

Fuel consumption, output and torque (599 kW):
